• Large multi-segment display that uses logical prompts along with dedicated and programmable function keys
  • Primary display is 29mm (1.1”) and secondary display 18mm (0.7”).
  • Printing can be tailored with custom record, docket or reports printouts
  • Rugged load cell input - designed to take 16x320 ohm load cells
  • Support for both Ethernet and Profibus DP to improve integration into larger control systems
  • Use the menu system directly via the alpha numeric keypad or the configuration utility View400 on a PC
  • Covers a wide range of applications
  • The modular design allows for the installation to be commissioned with only the components required, saving on time and money
  • English, Spanish, German, Dutch, French, Polish and Italian operator languages
  • Programmable f keys to program your most used functions
  • Print, Single, Test, Count, Piece, Units, Hold, Peak Hold, Product Select, High Resolution, Semi-automatic Preset Tare are all functions that can be programmed on the function keys

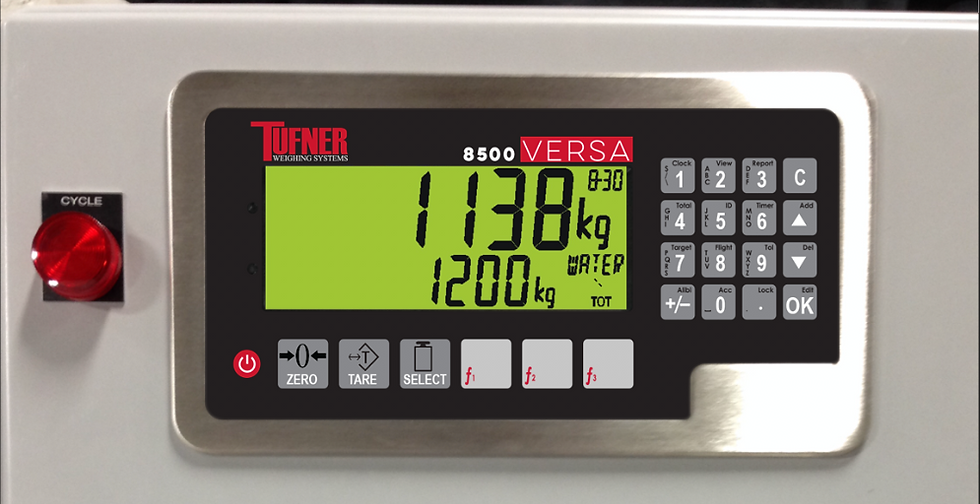

8400/8500 Versa Series Indicator

Models
  • Specifications

    • Display: LCD with a 1.1” primary display and a 0.7” secondary display
    • Units: lb, kg, t
    • Accuracy Class: III NTEP 08-720
    • Resolution: Up to 100,000 d, minimum of 0.25uV/d
    • Zero Range: +/- 2% to +/- 20% of full capacity
    • A/D Type: 24bit Sigma Delta
    • Load Cell: 16 load cells of 350 Ω maximum
    • Sensitivity (Internal): 0.3 μV/d
    • Input Voltage: 110/240VAC 50/60Hz
    • Power: 12-24VDC (15 VA max)
    • Battery: Rechargeable NiHM, 12V, 2.5Ah
    • Operating Temperature: 14°F to 122°F ≤ 90%RH
    • Decimal Points: Selectable 0, 1, 2, 3, 4 decimal places
    • Interface: RS232, RS-485
    • Baud Rate: 2400/4800/9600/19200
    • Approvals: NTEP, FCC, CE, C-tick
  • Options

    • Thermal Ticket Printer
    • Label Printer
    • Remote Display
    • Indicator Stand
