• 3/8” tread plate decking for increased durability and strength
  • Supported by orthotropic ribs that are completely sealed by continuous welds
  • Built with an airtight seal that eliminates the potential for rusting from the inside
  • The ribs are shaped to distribute concentrated loads better than I-beam designs, for a longer life
  • Interchangeable modular design
  • Each scale is built in a fully rotatable clipping to ensure proper fit and finish
  • Rotation of the scale module during assembly guarantees uniform and precise welds
  • Each module has as few as 6 bolts compared to 40 on all other modular designed scales
  • The platform is designed with special tabs and wheels for easy loading and unloading, especially when shipping with box trucks
  • Baked powder coated finish all over, proven to be as much as 10 times more effective in resisting wear and corrosion in the roughest environment
  • Contains no solvents and is safe in operation and environmental friendly with zero pollution



Truck Scale Brochure

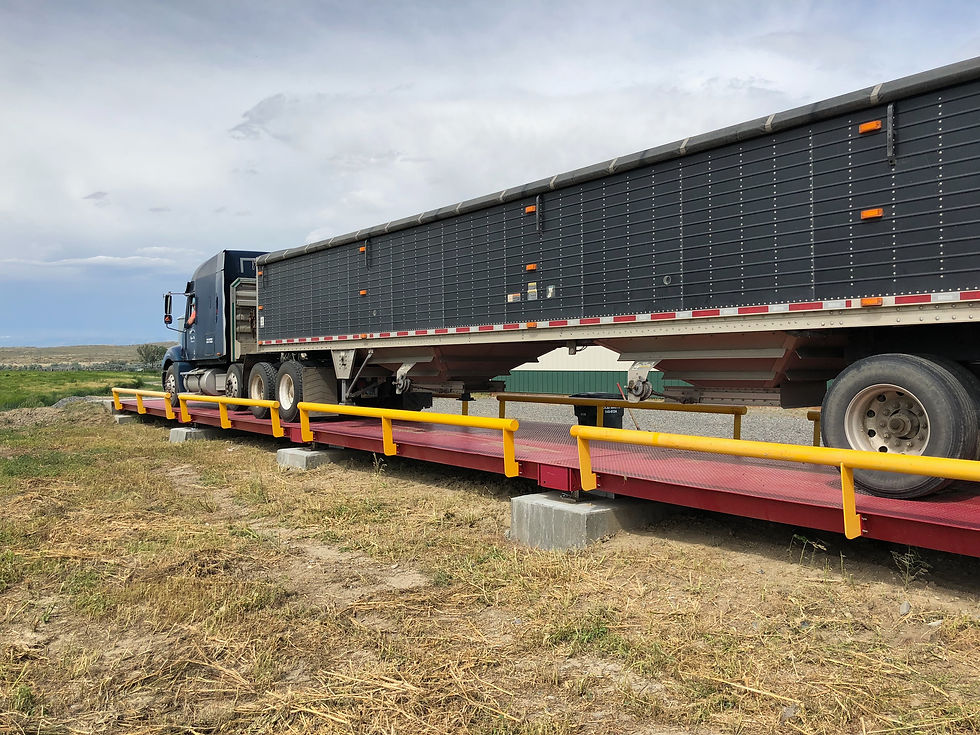

Truck Scale | Heavy-Duty | weigh in motion

Models
  • Tuf-Bridge Specifications

    • Gross Capacity: 270,000 lbs. (135 tons)
    • Concentrated Load Capacity: 120,000 lbs. (60 tons)
    • Width: 10 ft.  to 14 ft.
    • Length: 20 ft. to 120 ft.
    • Module Length: 10 ft. to 20 ft.
    • Scale Profile: 16.5 in.
    • Scale Clearance: 5.5 in.
    • Deck Plate Thickness: 7/16 in.
    • Weigh-bridge End Plates: 3/4 in. x 11 in.
    • Inner Supports: 1 in. thick slab plates (6 per module)
    • Finish: Baked primer and baked full coverage powder coating
    • Load Cell Type: Double ended, Analog, Alloy Steel, NTEP
    • Load Cell Numbers: 10 pieces (reference for 70 ft. and 80 ft. only)
    • Load Cell Capacity: 75,000 lbs., LE (Large Envelope)
    • Load Cell Cable: Stainless Steel sheathed for waterproofing, plus extra shroud for rodent protection
    • Junction Box: NEMA 4X Stainless Steel, cable strain reliefs
    • Summing Card: 10 cell boards with surge protection and sectional ajustment (reference for 70 ft. and 80ft only)
    • Surge Protection: Lightening/Surge protection
    • Installation Type: Above or in ground
    • Estimated Shipping Weight: 33,400 lbs. (70'x11.2' reference only)
    • Warranty: 5 years on scale platforms, 2 years on electronics
    • Certification: NTEP, Class III L, CC# 17-034
  • Everlast Specifications

    • Gross Capacity: 160,000 lbs. (80 tons)
    • Concentrated Load Capacity: 80,000 lbs. (40 tons)
    • Width: 10 ft.  to 14 ft.
    • Length: 20 ft. to 120 ft.
    • Module Length: 10 ft. to 20 ft.
    • Scale Profile: 14.5 in.
    • Scale Clearance: 4.5 in.
    • Deck Plate Thickness: 5/16 in.
    • Weigh-bridge End Plates: 1/2 in. x 11 in.
    • Inner Supports: 3/4 in. thick slab plates (6 per module)
    • Finish: Baked primer and baked full coverage powder coating
    • Load Cell Type: Double ended, Analog, Alloy Steel, NTEP
    • Load Cell Numbers: 10 pieces (reference for 70 ft. and 80 ft. only)
    • Load Cell Capacity: 75,000 lbs., SE (Small Envelope)
    • Load Cell Cable: Stainless Steel sheathed for waterproofing, plus extra shroud for rodent protection
    • Junction Box: NEMA 4X Stainless Steel, cable strain reliefs
    • Summing Card: 10 cell boards with surge protection and sectional ajustment (reference for 70 ft. and 80ft only)
    • Surge Protection: Lightening/Surge protection
    • Installation Type: Above or in ground
    • Estimated Shipping Weight: 24,500 lbs. (70'x11.2' reference only)
    • Warranty: 5 years on scale platforms, 2 years on electronics
    • Certification: NTEP, Class III L, CC# 17-034
  • Options

    • Indicator stand
    • Scoreboard
    • Stoplight
    • Software
    • Printer
    • Steel ramps
    • Guide rails (for above ground)
    • Frame (for portable truck scales)
