• Single point beam
  • Aluminum construction
  • IP67 rated



Interchangeable Products

  • Mettler Toledo: IL

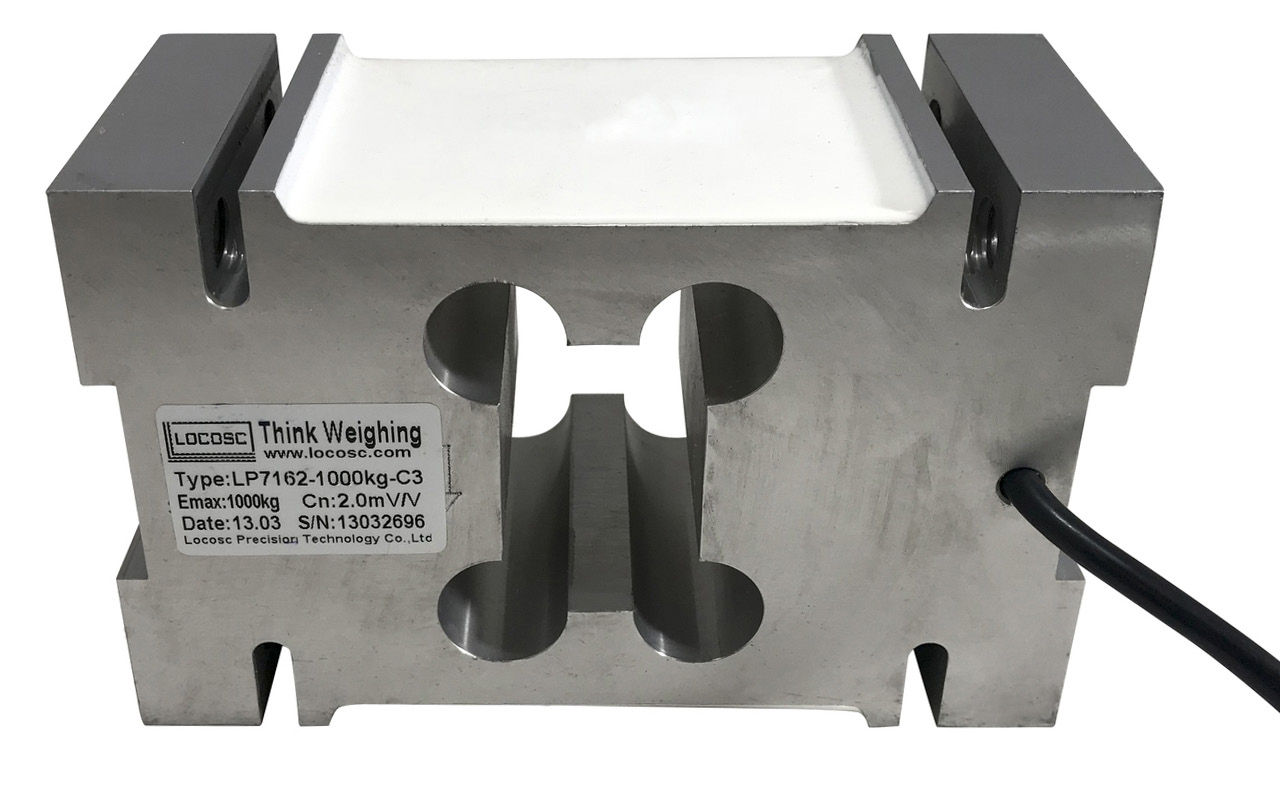

T306 Single Point Beam

Capacity
  • Specifications

    • Rated Capacity: 50/100/150/200/250/500/750/1000/2000 kgs.
    • Rated Output: 2.0±0.2mV/V
    • Non-Linearity: ±0.02% F.S.
    • Maximum Platform Size: 800mm x 800mm
    • Hysteresis: ±0.02% F.S.
    • Repeatability: ±0.02% F.S.
    • Creep (30 minutes): ±0.16% F.S.
    • Temperature Effect on Span: ±0.0015% F.S./C
    • Temperature Effect on Zero: ±0.0027% F.S./C
    • Zero Balance: ±1.00% F.S.
    • Insulation Resistance: >5000 MEGOHMS
    • Input Impedance: 410±10Ω
    • Output Impedance: 350±3Ω
    • Safe Overload: 150% F.S
    • Destructive Load: 200% F.S.
    • Excitation Recommended: 4-12V AC/DC
    • Material/Finish: Aluminum
    • Operation Temperature: -10°C - + 40°C (14°F - 104°F)
    • Cable Length: Standard 10ft/3m
    • Load Cell Wiring:
      Red........ +Excitation
      Black...... -Excitation
      Green..... +Signal
      White...... -Signal
